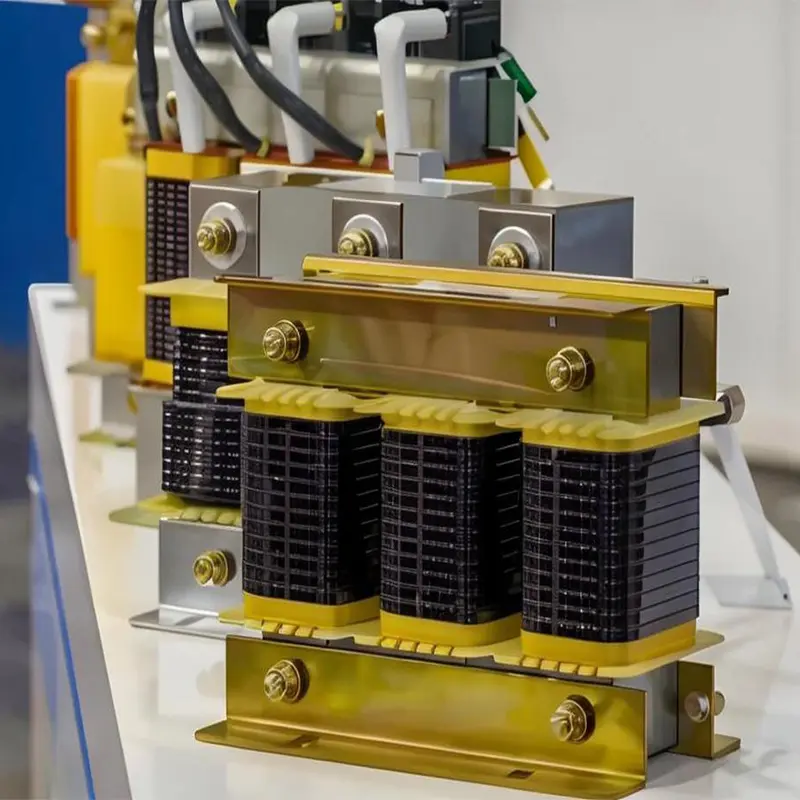

Three-winding transformer is a specialized electrical device
A three-winding transformer is a specialized electrical device that features one primary winding and two secondary windings, designed to transfer electrical energy between circuits while providing multiple voltage outputs from a single input. This configuration allows it to handle various voltage levels efficiently, making it ideal for complex power systems.
Key features of three-winding transformers include:
1. Concentric Windings: The primary and secondary windings are concentrically arranged, with the secondary windings surrounding the primary.
2. Set Winding Geometry: This geometry contributes to the transformer's efficiency and performance.
3. Cooling Options: Three-winding transformers may incorporate various cooling methods, such as oil ducts to control temperature rise.
4. Cost Consideration: The design allows for cost-effective solutions, especially in applications requiring multiple voltage outputs.
5. Shipping Differences: The compact design of three-winding transformers can influence shipping considerations due to their size and weight.
In terms of safety and performance, three-winding transformers are subject to rigorous testing to ensure they meet industry standards. Tests include insulation resistance measurements, winding resistance tests, and short-circuit tests to evaluate the transformer's ability to withstand mechanical stress. These tests help to ensure the transformer's insulation system is safe for operation and that it can handle the electromagnetic forces generated during short-circuit events.
Three-winding transformers are commonly used in high-voltage power transmission and distribution systems, where they manage substantial amounts of electrical power and ensure stable voltage regulation throughout the power grid. Their robust construction and substantial size make them ideal for large-scale applications where both reliability and efficiency are crucial.
In summary, three-winding transformers offer a versatile solution for power systems that require multiple voltage outputs. Their design, combined with rigorous testing and adherence to safety standards, makes them an essential component in maintaining the smooth operation of extensive power networks.
