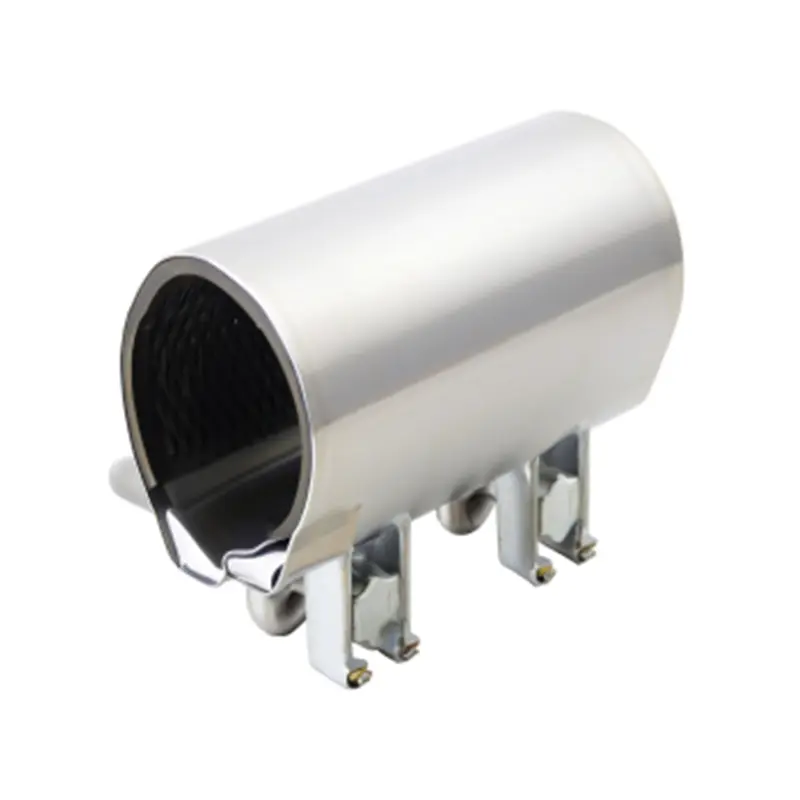

Small aperture repair clamp
The Small Aperture Repair Clamp is an efficient and reliable solution for quick repairs on a variety of pipe materials, including steel, copper, asbestos cement, cast iron, PVC, and GRP pipes. Here's a core description of this product:
1. Construction and Material: Made from pre-rolled plates of stainless steel 304L, these clamps are manufactured with a hinge point to simplify installation . The design includes welded stainless steel 304L studs and fingers, and the clamp is completely pickled and passivated after welding to ensure optimum corrosion resistance .
2. Features: The clamps are equipped with stainless steel nuts of A4 quality, which are anti-friction through yellow passivation to prevent galling . The gasket is made of NBR rubber with a waffle structure and rounded tops, providing a fully circumferential seal . The vulcanized spanner plate adds to the durability and ease of use .
3. Tolerance and Range: The double band repair clamp has a maximum tolerance of 24 mm, depending on the pipe diameter . Clamps are available in different diameters from DN 80 up to DN 600 and in various lengths: 200, 250, 300, 400, 500, and 600 mm, with other lengths available on request .
4. Pressure Class: The indication pressure class for wastewater is 16 bar for DN 80 up to DN 150, 10 bar for DN 175 up to DN 450, and 6 bar from DN 500 . The clamps are also suitable for low-pressure gas up to and including 300 mbar, with higher pressures available upon request .
5. Applications: The Small Aperture Repair Clamp is ideal for repairing pipes with holes or cracks, providing a permanent repair solution. They are suitable for use in gas, water, and wastewater applications, with a temperature range of -40°C up to +100°C .
6. Corrosion Resistance: The stainless steel repair clamps are passivated to ensure an optimum corrosion resistance, making them suitable for various environments .
7. Sealing and Anchoring: The clamps provide a progressive sealing effect, with the sealing gasket's force increasing as the pressure in the pipe rises. This results in minimal installation torque and long-lasting elasticity . The progressive anchoring effect allows the clamp to adapt to changes in axial loading, with specially designed teeth biting into the pipe's surface to provide a secure connection .
8. Stress-Free Joining: The sealing and anchoring functions in the clamp are independent, allowing for stress-free joining and flexibility in the piping system .
In summary, the Small Aperture Repair Clamp is a versatile, durable, and efficient solution for pipe repair, offering a range of features that ensure a secure, long-lasting, and corrosion-resistant repair.
