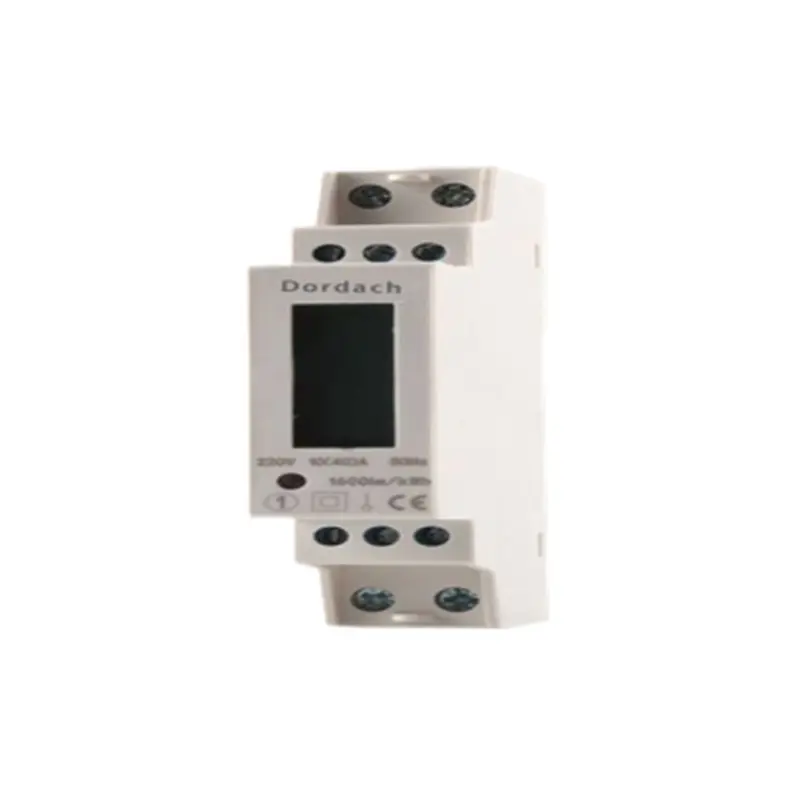

Single-phase Guide Track Type Multi-Functional Energy Meter (Simple Type 1P)
The Single-phase Guide Track Type Multi-Functional Energy Meter is a sophisticated device designed for precise energy measurement in single-phase electrical systems. This meter is engineered to meet the highest standards of accuracy and reliability, ensuring efficient energy monitoring and management.
Key features of this energy meter include compliance with international standards such as IEC 62053-21 and DIN EN50022, ensuring accuracy and reliability in energy measurement. It is designed for installation in switchgears on a DIN TH35 rail, making it convenient for integration into existing electrical infrastructure. The meter boasts an LCD display, which provides clear visibility of energy consumption, voltage, current, and power measurements, allowing for real-time monitoring of electricity usage.
The meter is capable of direct current measurement up to 100A and offers high accuracy with ±0.5% for voltage and current, 0.1% for frequency, 0.01% for power factor, 1% for power, and Class 1 for active energy, Class 2 for reactive energy. It features two pulse outputs configurable for import/export energy measurement, enabling detailed tracking of energy flow.
Communication is facilitated through RS485 Modbus communication, with an option for Mbus variant, allowing the meter to be integrated into smart grid systems and energy management platforms. The meter is self-powered, with a supply of 176 to 276V AC(L-N), ensuring low power consumption and reducing the need for external power sources.
The Single-phase Guide Track Type Multi-Functional Energy Meter is designed for indoor fixed installation and operates within an environment temperature range of -25 to +55°C and a relative humidity not exceeding 95%. It is resistant to electromagnetic interference, has low self-consumption, high precision, high overload capacity, and is stable and reliable.
In summary, the Single-phase Guide Track Type Multi-Functional Energy Meter is a versatile, accurate, and reliable device for energy measurement and monitoring in single-phase systems. Its advanced features and compliance with international standards make it an ideal choice for residential, utility, and industrial applications.
