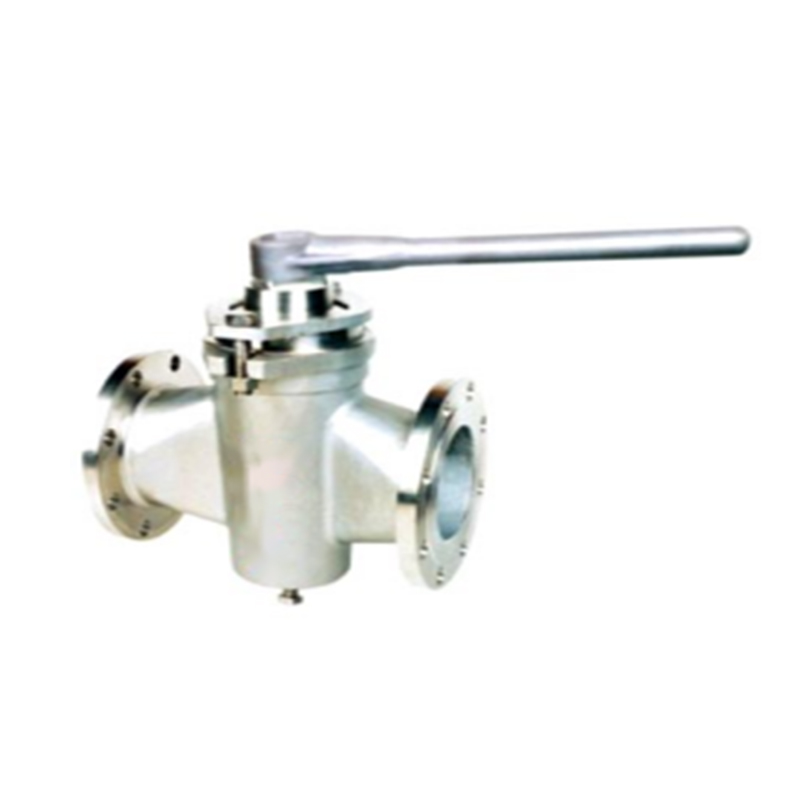

Plug Valve is a quarter-turn rotary motion valve
The Plug Valve is a quarter-turn rotary motion valve that utilizes a cylindrical or tapered plug to control the flow of fluids through the body. Here's a core description of this product:
1. Design and Operation: Plug valves are known for their simple design, consisting of a body, bonnet, stem, and plug. The plug can be round or tapered and may feature various port openings, such as rectangular, round, or diamond-shaped, each affecting the flow characteristics differently.
2.Applications: They are widely used as on-off stop valves, providing a bubble-tight shutoff in services such as air, gas, vapor, hydrocarbon, slurries, mud, and sewage. They are also suitable for vacuum to high-pressure and temperature applications.
3. Advantages: The plug valve's design offers several advantages, including a straightforward and quick open and close action, minimal resistance to flow, dependable leak-tight service, and the ability to handle high pressures and temperatures. The multiple port design can reduce the number of valves needed and allow changes in flow direction.
4. Sealing Mechanisms: Plug valves can be lubricated or non-lubricated. Lubricated valves use a lubricant to reduce friction and provide a better seal, suitable for higher pressures, temperatures, and abrasive materials. Non-lubricated valves feature an elastomeric sleeve that reduces friction and extends the life of the valve.
5.Durability and Maintenance: Constructed from resilient metals or high-performance polymers, plug valves are engineered to last and withstand demanding operating conditions. They require minimal maintenance due to their simple design and few moving parts.
6. Bi-directional Flow: A significant benefit of plug valves is their ability to handle bi-directional flow, simplifying installation as there’s no need to consider the direction of fluid movement at the time of installation.
7. Pressure and Temperature Ratings: Plug valves are typically found in sizes up to 18 inches (DN 450) and in lower-pressure classes such as ANSI Classes 150 and 300 (PN 16 and 40).
8. Special Designs: To handle abrasive and sticky fluids, special designs are required. For corrosive chemical services, plug valves with body linings made from materials like polytetrafluoroethylene (PTFE) are used.
In summary, the Plug Valve is a robust and versatile valve designed for precise flow control in a variety of industrial applications, offering a combination of durability, reliability, and ease of operation.
