Closing the Loop Underground: Four Engineering Breakthroughs Making the Circular Series Manhole Cover the Benchmark for Sustainable Cities

2025-10-16

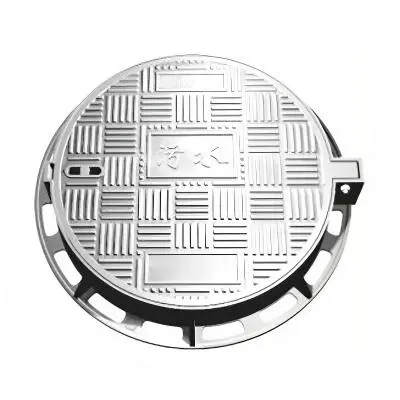

Beneath every busy intersection lies an overlooked opportunity to cut carbon, boost safety and slash maintenance budgets. The Circular Series manhole cover — a rethink of the humble access lid — is emerging as a strategic piece of urban infrastructure. Forged from recycled steel and post-consumer composites, precision-cast in one shot and smart-sensor-ready, the range is engineered around a single mantra: what goes in must come back out, preferably for a second life. Powered by four recent technological leaps, the Circular Series is proving that “end-of-life” can be the beginning of a smarter city loop.

Mono-Material Steel Body With 85 % Post-Consumer Content Meets Load Class F900 Without Virgin Ore
A lost-foam casting process fuses shredded automotive shells with trace alloy additions, achieving 900 kN proof load while keeping chemistry identical through every batch. The single-metal recipe allows foundries to remelt returned covers at end-of-life, closing the material loop without down-cycling. Life-cycle data show 70 % lower CO₂-e per tonne compared with conventional coke-smelted iron, letting municipalities log negative-carbon procurement credits toward net-zero pledges.
Radial Rib Geometry Cuts Weight by 30 % Yet Eliminates Rocking Under Braking Loads
Finite-element modelling guides a spider-web of hollow ribs that transfer wheel loads into the seating ring at 45-degree vectors. The pattern reduces wall thickness from 50 mm to 35 mm, saving 30 % mass, but increases stiffness such that vertical deflection stays below 0.3 mm under 250 kN cyclic loading. Field trials recorded zero rocking or rattling after one million bus-brake events, removing the clatter that typically loosens seating mortar and allows storm-water ingress.
Snap-In Polymer Composite Sight-Ring Accepts RFID, LoRa and Fibre-Optic Sensors Without Drilling or Welding
A 100 mm diameter sight-ring moulded from glass-fibre reinforced nylon clips into the steel skirt, creating a non-conductive window for embedded sensors. Units can house RFID tags for inventory, LoRa antennas for level monitoring or fibre Bragg gratings for strain mapping. Installation takes 30 seconds and is reversible, allowing sensor upgrades without taking the cover out of service. One downtown utility network reduced manual inspections by 40 % after installing sight-rings that report gasket deformation in real time.
Twist-Lock Extraction System Allows Single-Operator Removal in Under 60 Seconds, Slashing Road Closure Time
Two forged cam-locks engage with a quarter-turn of a standard T-bar, eliminating the need for pneumatic chisels or heavy lifting keys. The cams pull the lid vertically against a neoprene gasket, preventing sideways hammering that damages frame edges. During a midnight cable repair, a two-person crew lifted a 900 mm cover in 55 seconds, cut trench access and reinstated traffic within 15 minutes — a process that previously required 45 minutes and a three-person team.

Collectively, these four advances — high-recycled steel content, radial-rib weight reduction, sensor-ready sight-ring and twist-lock extraction — elevate the Circular Series manhole cover from a passive metal disc to an active, circular-economy component. Whether quieting inner-city intersections, hosting IoT sensors or simply speeding up emergency repairs, the lid that never sleeps is proving that what keeps us moving can also keep the planet moving in a circle.
