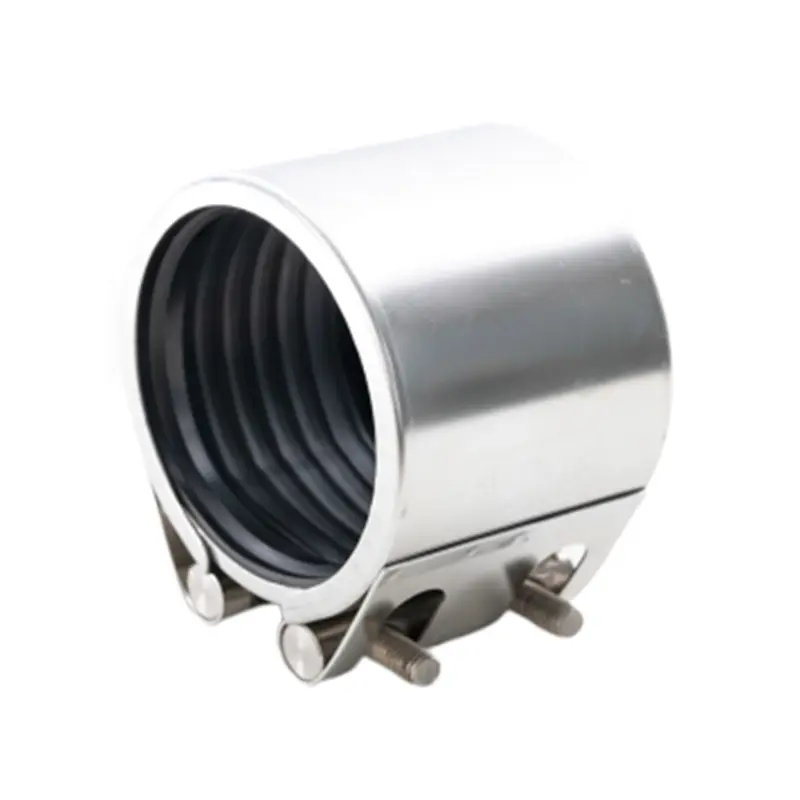

Common type pipe repair connector
The Common type pipe repair connector is an essential component for pipe repair and connection, characterized by its robustness and versatility in various applications. Here's a detailed core description of this product:
1. Versatility and Adaptability: Designed for a wide range of pipe repair and connection applications, the common type pipe repair connector is suitable for both onshore and offshore environments, providing reliable solutions for pipe maintenance.
2. Mechanical Connection and Sealing: These connectors typically attach to the pipe mechanically and feature metal sealing elements that ensure a lasting seal even under high internal pressure and corrosive environments within the pipe.
3. Lightweight Design: The common type pipe repair connector is engineered with a lightweight design, being approximately 40% lighter than other connectors on the market, which facilitates ease of installation and handling.
4. Load-bearing Capability: The connector is capable of withstanding full pipeline pressure, axial, and bending loads, even under external water pressure in drained pipelines.
5. Simplicity in Installation: The connector accommodates pipe tolerances without the need to remove longitudinal welds, streamlining the installation process.
6. Broad Applicability: Suitable for pipe diameters ranging from 6 inches to 38 inches, the design life spans up to 30 years, and it is designed for water depths up to 2000 meters, with a temperature range from -20°C to 105°C.
7. High-Pressure Resistance: For smaller diameter pipes, the design pressure class can reach up to 650 bar, while for larger diameter pipes, it can reach up to 360 bar.
8. Compliance with International Standards: The connector is designed in accordance with the latest applicable specifications, such as DNV-RP-F113 "Submarine Pipeline Repair" and DNV-ST-F101 "Submarine Pipeline Systems," and is pending DNV type approval.
9. Patented Design: With a patented design by Saipem, it offers a unique metal sealing concept that allows for mechanical connection and sealing of the pipe without contact with the corrosive fluids inside the pipe, through an external metal seal and a toothed gripping system.
10. Environmental Adaptability: The design takes into account the conditions of deep-sea environments, including pressure differentials, working pressure differentials, and axial loads, ensuring normal operation at water depths of 1500 meters.
The common type pipe repair connector plays a crucial role in the field of pipe repair and connection, ensuring the integrity and safety of pipeline systems with its efficiency, reliability, and multifunctionality.
