Clamp type butterfly valve

This series of butterfly valves adopts a medium line design, and its main structure consists of valve body, valve disc, valve seat, valve stem, and transmission operating mechanism.

Product Detail

Product overview:

This series of butterfly valves adopts a medium line design, and its main structure consists of valve body, valve disc, valve seat, valve stem, and transmission operating mechanism. The valve seat adopts a detachable structure and can be made of materials that are resistant to high temperature, low temperature, corrosion, light, and aging according to the physical and chemical characteristics of different media. It can be widely used as a regulating and intercepting device in fluid pipelines such as water supply and drainage, chemical, food, medicine, textile, hydropower, ships, metallurgy, energy systems, etc.

Product Features：

The valve seat adopts a detachable design for easy on-site maintenance, and adopts a full basin design, which is not easily affected by material jamming.
The valve disc material adopts a streamlined design, which can be used in both directions, with low flow resistance and excellent flow
characteristics.
The shaft pin adopts a US patented design with a pull-out pin structure, which can tightly bond the valve flap and shaft together without
loosening or weakening the strength of the shaft, and has good interchangeability.
The selection of operating mechanisms is flexible, and different rotating devices such as manual, electric, and pneumatic can be configured
according to user needs.

SIZE		DN50-DN600
PRESSURERATING		PN10/PN16
BODY TEST RPESSURE		1.5/2.4MPa
SEAT TEST PRESSURE		1.1/1.7MPa
OPERATION TEMPERATURE		0℃-90℃
MEDIA		Water
STANDARD MATERIAL	BODY	Nodular cast iron
	DISC	Cast stainless steel, ductile iron coated with chromium
	SEAT	EPDM
	STEM	Stainless steel
PAINTING		Epoxy resin powder coating

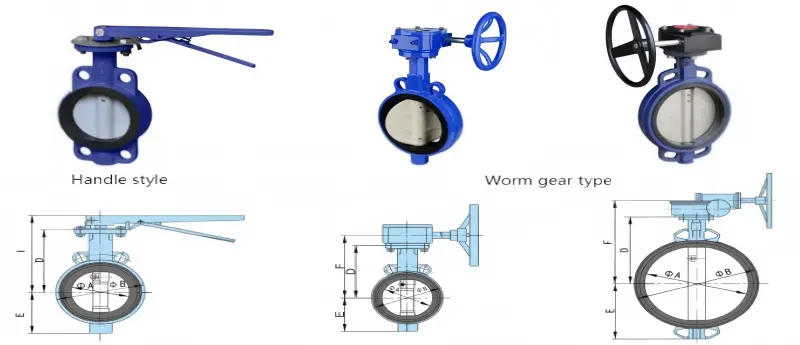

图片4(1)

External dimensions:

Inch Diameter	Nominal Diameter	ФА	ФB	C	D	E	F	ФG	H	I	L
2	50	50	105	43	116	57	147	150	150	151	250
2-1/2	65	65	125	46	121	70	152	150	150	156	250
3	80	80	140	46	130	76	164	150	150	165	250
4	100	100	155	52	150	100	181	150	150	185	250
5	125	125	190	56	162	125	193	150	150	197	268
6	150	150	216	56	190	140	221	220	190	230	268
8	200	200	271	60	215	170	251	300	224	-	-
10	250	250	326	68	250	202	286	300	224	-	-
12	300	300	376	78	300	235	338.5	300	224	-	-
14	350	325	422	78	350	248	390	300	240	-	-
16	400	375	483	102	360	270	443	220	336	-	-
18	450	425	530	114	400	327	483	220	336	-	-
20	500	475	582	127	430	355	534	350	351	-	-
24	600	575	688	154	517	417	638	350	402	-	-

External dimensions:

Inch Diameter	Nominal Diameter	ФА	ФB	C	D	E	F	G
2	50	50	105	43	116	57	130	269
2-1/2	65	65	125	46	121	70	130/144	287/306
3	80	80	140	46	130	76	144/162	321/343
4	100	100	155	52	150	100	162	387
5	125	125	190	56	162	125	182/211	433/452
6	150	150	216	56	190	140	211/245	495/512
8	200	200	271	60	215	170	245/275	567/584
10	250	250	326	68	250	202	336	669
12	300	300	376	78	300	235	420	784
14	350	325	422	78	350	248	420/462	847/878
16	400	375	483	102	360	270	462/374	910/1017
18	450	425	530	114	400	327	374	1114
20	500	475	582	127	430	355	374	1172
24	600	575	688	154	517	417	374	1321

External dimensions:

Inch Diameter	Nominal Diameter	ФА	ФB	C	D	E	F	G	H	I
2	50	50	105	43	116	57	-	280	48	61
2-1/2	65	65	125	46	121	70	-	298	48	61
3	80	80	140	46	130	76	-	313	48	61
4	100	100	155	52	150	100	50	428	60	75
5	125	125	190	56	162	125	56/69	465/495	60	75
6	150	150	216	56	190	140	69	538	63	90
8	200	200	271	60	215	170	79	618	85	133
10	250	250	326	68	250	202	79	685	85	133
12	300	300	376	78	300	235	79	768	85	133
14	350	325	422	78	350	248	-	-	-	-
16	400	375	483	102	360	270	-	-	-	-
18	450	425	530	114	400	327	-	-	-	-
20	500	475	582	127	430	355	-	-	-	-
24	600	575	688	154	517	417	-	-	-	-
